Unlocking the Click: How 3D CBCT Imaging Reveals the Root of TMJ Pain
If you frequently experience a popping jaw, chronic headaches, unexplained ear pain, or a jaw that occasionally feels "stuck," you are not alone. These are the hallmark warning signs of a Temporomandibular Joint (TMJ) disorder.
Because the TMJ is one of the most complex, heavily used joints in the human body, diagnosing exactly what is causing its malfunction has historically been a challenge. Flat, traditional 2D dental X-rays often leave specialists guessing.
At Cone3D CBCT Imaging, we use the state-of-the-art Carestream CS 8200 3D Advanced system to remove the guesswork, providing doctors with a crystal-clear, micron-level look inside the joint space. Here is a breakdown of why your doctor might request a 3D scan for TMJ pain and how it paves the way to relief.

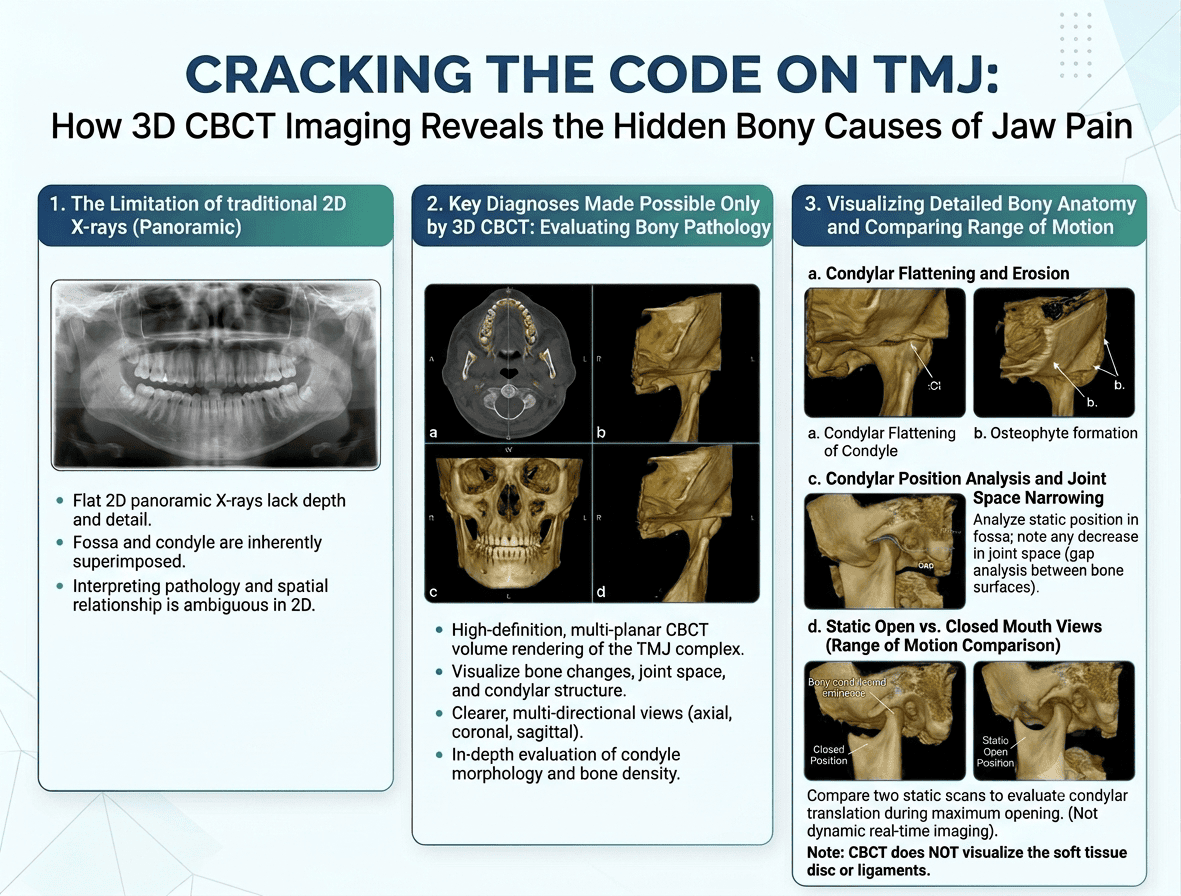

The TMJ Dilemma: Why 2D X-Rays Fall Short
Your temporomandibular joint connects your lower jaw (mandible) to the temporal bone of your skull. It acts like a sliding hinge, allowing you to chew, speak, and yawn. Sandwiched inside that joint is a tiny, delicate cartilage disc that cushions the movement.
When a clinic takes a standard 2D panoramic film (OPG), the dense temporal bone of the skull overlays directly on top of the jaw joint. This structural overlap causes visual crowding, making it incredibly difficult for a doctor to evaluate:
- Subtle bone erosion or arthritic changes.
- The exact spacing between the joint's ball (condyle) and socket (fossa).
- Asymmetry between the left and right sides of your face.
How 3D CBCT Changes the Game for TMJ Diagnosis
A Cone Beam Computed Tomography (CBCT) scan creates an exact, three-dimensional digital replica of your maxillofacial skeleton in just 10 to 20 seconds. For TMJ analysis, this offers several unmatched diagnostic advantages:
1. View from Every Angle (Multiplanar Reconstruction)
Instead of looking at one flat image, specialized imaging software allows doctors to slice through the joint digitally in three distinct dimensions: coronal, sagittal, and axial views. Your doctor can look at the bone surface from the inside out, completely free of overlapping skull structures.
2. Precise Bone Quality and Condylar Position
CBCT allows for the immediate assessment of structural changes within the condyle. Doctors can check for:
- Flattening or Osteophytes: Structural signs of osteoarthritis.
- Erosion: Fine pitting in the bone surface that signals active joint degradation.
- Subluxation: Seeing exactly how the ball slides out of its socket when your mouth is open versus when it is closed.
3. True Symmetry Evaluation
Many TMJ issues stem from one side of the jaw overcompensating for the other. Because a single CBCT scan maps the entire skull dynamically, specialists can perfectly compare the left and right joints side-by-side to see if a bite misalignment or physical trauma is driving your symptoms.
Why Get Your TMJ Scan Done at Cone3D?
If your dentist, orthodontist, or maxillo-facial surgeon has recommended a 3D view of your jaw joints, choosing the right imaging center matters.
- Ultra-High Resolution (0.075 Voxels): The Carestream CS 8200 3D Advanced system captures the microscopic bone details required to identify early-stage joint degradation before severe symptoms set in.
- Advanced Safety Framework: Our center operates under the strict quality protocols mandated by the Atomic Energy Regulatory Board (AERB) of India and is fully registered on the e-LORA platform.
- Low Dose Comfort: Thanks to advanced low-dose imaging modes, you receive a highly diagnostic 3D volume with minimal radiation exposure, standing comfortably in an open-concept machine.
The Pathway to Targeted Treatment
A proper diagnosis is the first step toward effective treatment. Whether your TMJ specialist decides you need a custom stabilization splint, orthodontic tracking, physical therapy, or joint therapy, their decision relies entirely on the underlying bone architecture. A 3D scan provides the concrete blueprint they need to plan safely.
Stop living with jaw pain and persistent clicking. Speak to your doctor about getting a high-definition look at your joints.
Schedule Your TMJ Scan Today
Cone3D CBCT Imaging is located along the Western Express Highway in Borivali East, Mumbai. We provide high-accuracy, rapid 24-hour reporting to get you answers quickly.
- Address: G2, A Wing, Sheetal Palace, Kulupwadi, Near Western Express Highway, Borivali East, Mumbai - 400066
- Phone / Booking Inquiries: +91 8433778224
